The right automatic sliding door for every space.
Features and Benefits
Economics
With the ESLD 7001, ENOX is able to offer a particularly competitive sliding door operator based on the proven capabilities of ENOX products.
Smooth & Silent
It moves silently with the use of DC brush-less motor and moves smoothly due to highly precise design.
Power Saving
High efficiency circuit is designed in order to save electricity.
DC Brush-less Motor
DC brush-less motor benefits with high rotational speed, low electric consumption & protection from overloading. more advantages are rapid response, potential torque, plus linear variation for voltage.
Multi Function Controller
It’s a micro processor controller with LED display. It has multi functions that you can set according to your needs. The self-learning microprocessor control ensures reliably operation keeps the motion cycles harmonised and satisfies and satisfies high safety requirements.
User Friendly
Due to it user friendly module, it’s easily adaptable to individual requirement.
Operation status of equipment
Automatic sliding includes monitor display to allow users to understand the existing operation status easily and following 5 functions can be recognized.
I. Current R.P.M. for Motor.
II. Position display for door leaves.
III. Speed of opening and closing for each second.
IV. Power display for batteries in reserve.
V. Position display for opening.

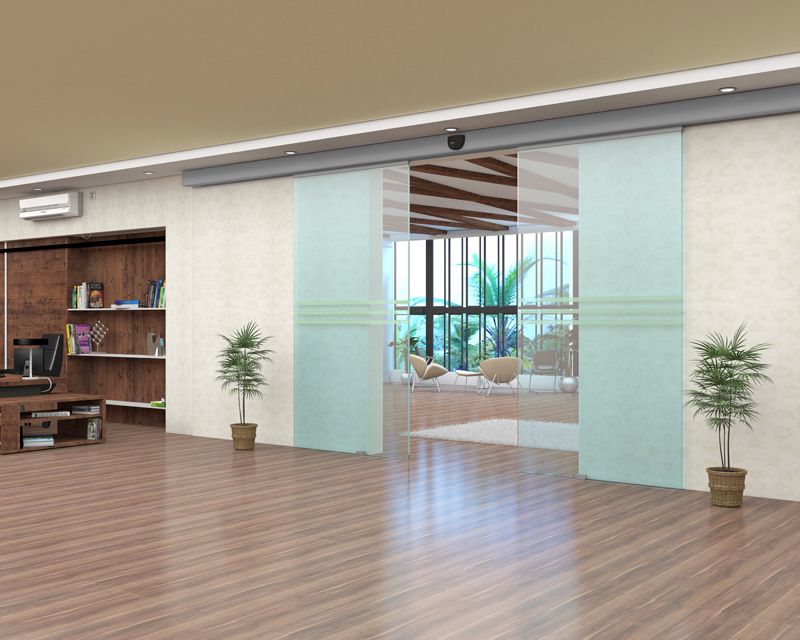

ENOX Automatic Sliding Door 'Sensor Door' ESLD 7001 & ESLD 7002
Features and Benefits of ENOX Automatic Sliding Door 'Sensor Door'
Area of Applications
Technical Specification.
Operating rating | Continuous repeated door opening/closing |
Transmission | Toothed belt |
Drive-wheel material | Powder metallurgy |
Control system | Microprocessor (Dimension : 450x51x65 mm) |
Function | 15 functions |
Hanger | Adjustable single wheel hanger |
Motor | DC brushless Motor |
Watt | 40W - 60W |
Speed (mm/sec.) | 150 - 650 mm/sec (Adjustable) |
Operating voltage and power consumption | AC 90V - 250V 60/50Hz 1.9A - 0.8A 120W |
Door open position time | 1 - 60 sec. |
Display Mode | 1.Distance counter 2.RPM 3.Speed(mm/sec) |
Ambient temperature | 20°C - +45°C |

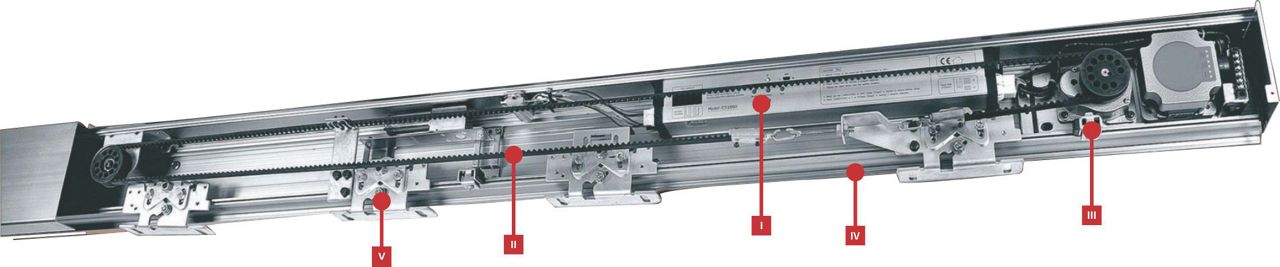

I. Microcomputer digital controller
Intelligent digital controller that is micro computerized completely. The regular function circuit is controlled by the computer indication with fixed-point switch free. The door position adjustment, tracking distance set-up, various energy strength, open and closing speed are all controlled by the microcomputer. In a long time operation, the open and closing action is still precise. When the auto-door is opening and closing, if the door hits something while functioning, the digital control system will reverse moving immediately and get into safety protection mode with a continuous warning sound to avoid the occurrence of any damage to human body or broken machine parts and increase the entering safety.
II. Drive belt
High flexible belt is provided with superior anti-gland feature that can be used repeatedly without getting loose and fatigued resilience after long term use.
III. Drive motor
High efficiency permanent magnet brush-less serve motor, which is small in size, high-RPM and low power consumption which does not heat after continual usage. It makes the door open and close silently during whole functioning period.
IV. Aluminum alloy housing
Strong alloy housing easily combines with other accessory parts. The alloy housing is one-unit shaping that has exclusive profile and smooth track that does not get deformed or worn down after long term usage.
V. Door fixing hanger
The door system has an integrated fixing hanger which allows smooth and secure movement of the panels. It is combined with the stopper to prevent the panels from slipping out.
