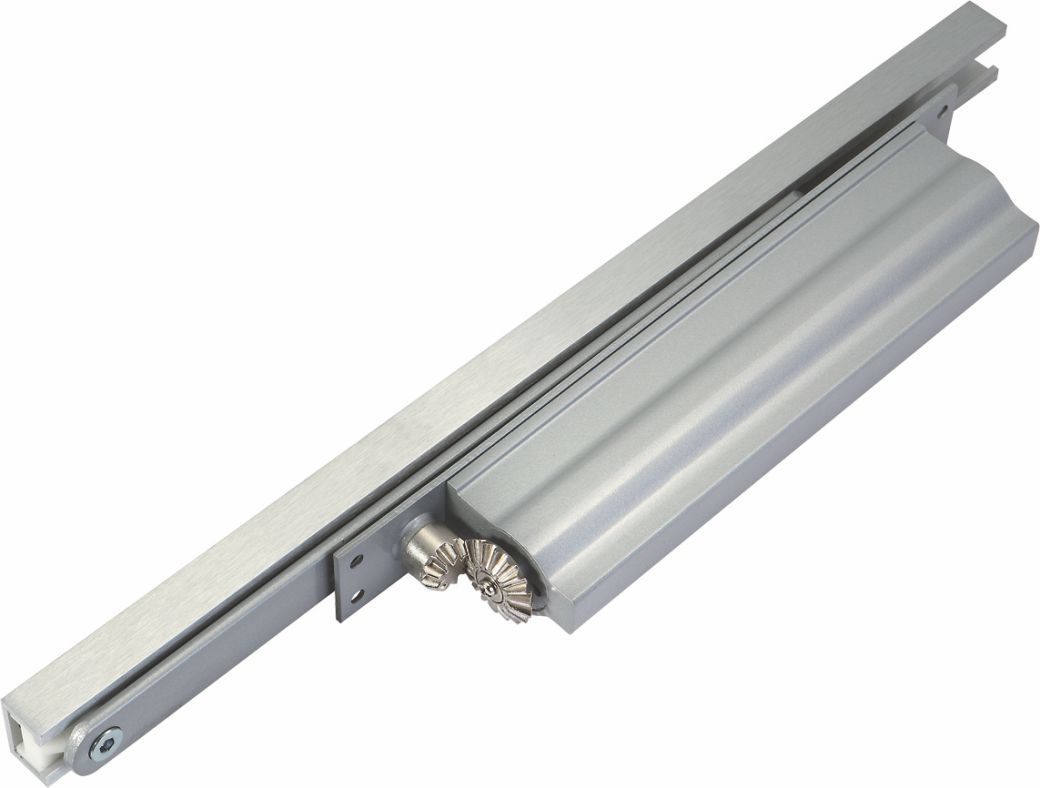

ITS - 6600(Cam Action)

Concealed Door Closer with adjustable closing force EN 2 - 4

Features :

• Hydraulic closing with two stage closing control.
• Closing force 2 - 4 according to EN for door width up to 1100mm adjustable by force adjustment.
• With Standard arm.
• Same version DIN left and DIN right.
• Mounting height only 59 mm.
• Maximum Door Weight - 80 kgs.
• Maximum Door Width - 1100 mm.
• Maximum angle of door opening - 120°.
• Tested - 500,000 Cycles.
• Finish - Silver.

Door Closer Mechanism

Special Features		ITS 6600(CAM ACTION)
Closing Force Size According to EN		2-4
Door Width Size According to EN		≤850
		≤650
		≤1100
Door Weight Max (in Kgs)		80

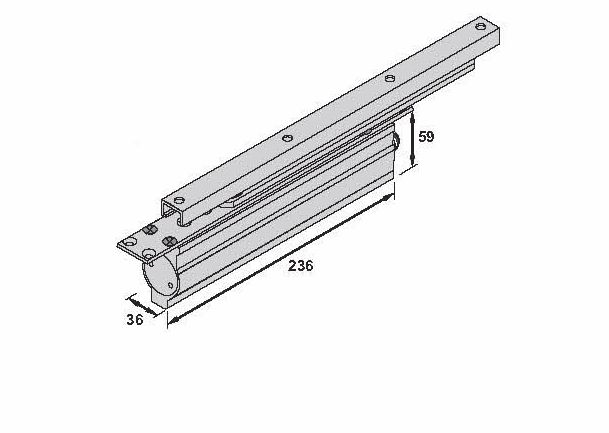

Dimensions including mounting plate	MM       Length	236
	MM       Depth	36
	MM       Height	59
Arm	Standard
	Parallel Arm Bracket
	Slide Arm
	Slide Arm & Hold Open Arm
	Hold Open Arm
Closing Speed (adjustable)
Latching Speed (adjustable)
Back Check (adjustable)
Delay Action
Single Action
Tested According to EN
Certified According to EU Directive
