ENOX

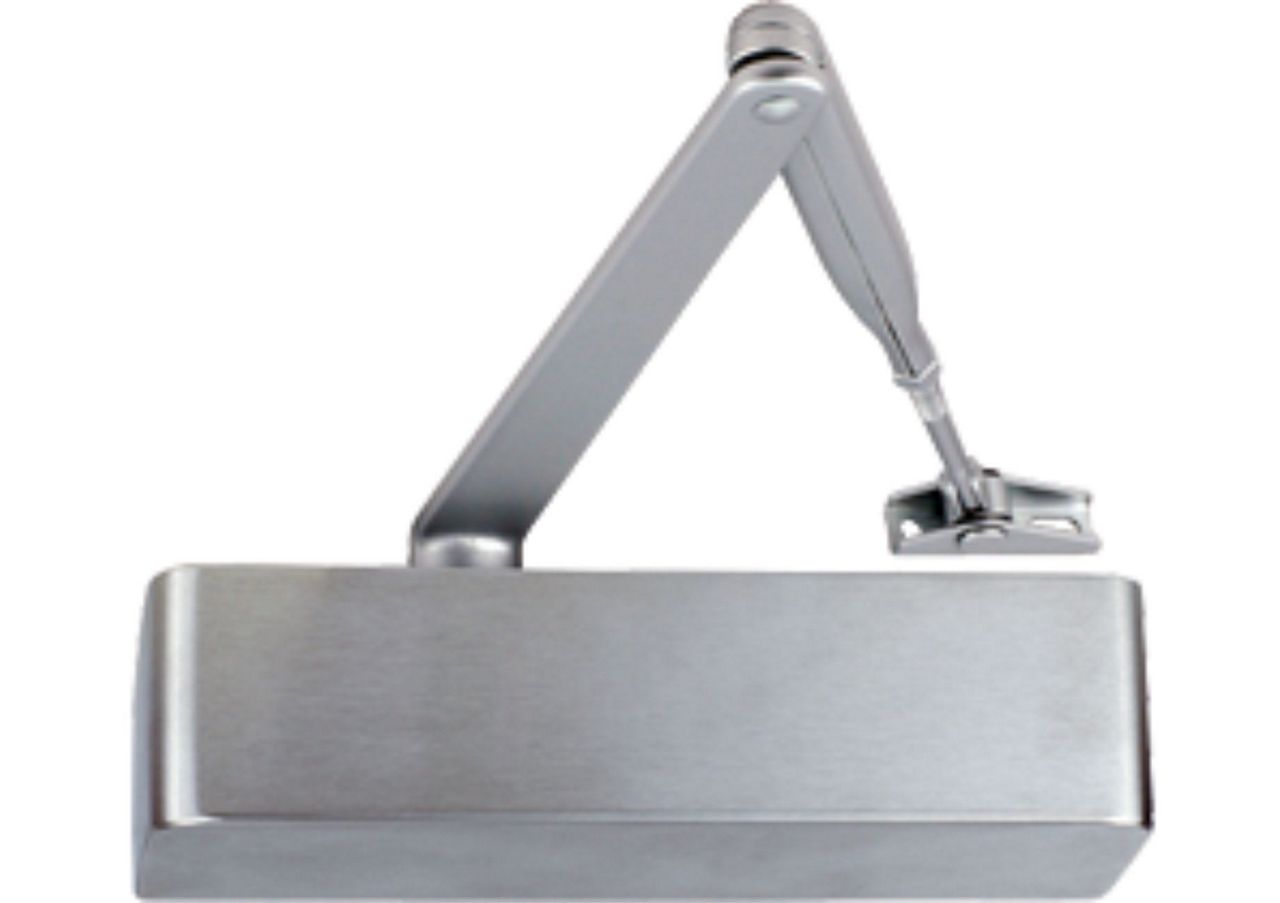

TS - 830

Door Closer with adjustable closing force EN 2-6

Features :

  • Hydraulic closing with two stage closing control.
  • Adjustable closing force EN 2-6 for door width up to 1400mm.
  • With standard arm.
  • Same version DIN left and DIN right.

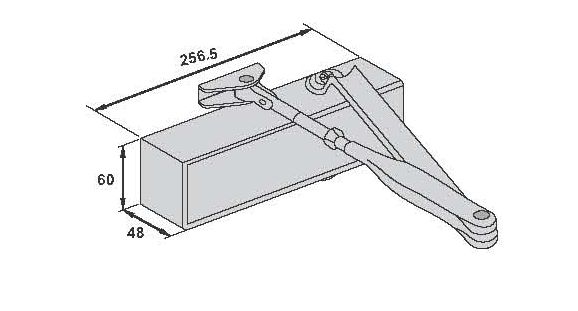

  • Mounting height only 60 mm.
  • Maximum Door Weight - 120 kgs.
  • Maximum Door Width - 1400 mm.
  • Maximum angle of door Opening - 180°.
  • Tested - 500,000 Cycles.
  •  Finish - Silver.

  • Adjustment of Closing Speed

    • Turn the valves clockwise to decrease closing speed.
    • Turn the valves counter clockwise to increase closing speed.

    For Standard Arm

    Closing force diagram, hinge side

    Closing Speed Continuously adjustable closing speed from approx 180° to 15°

    Latching Speed Continuously adjustable latching speed from 15° to 0° to ensure complete latching.

    Closing force diagram, hinge-opposite side

    Closing Speed Continuously adjustable closing speed from approx 170° to 15°

    Latching Speed Continuously adjustable latching speed from 15° to 0° to ensure complete latching.

    For Slide Rail

    Closing force diagram, hinge side

    Closing Speed Continuously adjustable closing speed from approx 120° to 15°

    Latching Speed Continuously adjustable latching speed from 15° to 0° to ensure complete latching.

    Closing force diagram, hinge-opposite side

    Closing Speed Continuously adjustable closing speed from approx 120° to 15°

    Latching Speed Continuously adjustable latching speed from 15° to 0° to ensure complete latching.
