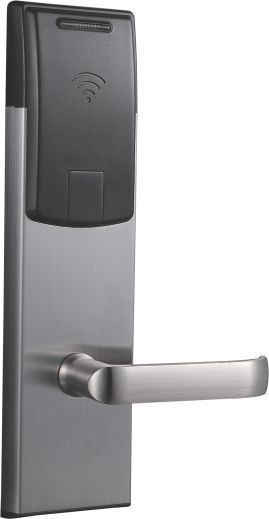

Sensitivity and Reliability of RF Hotel Lock
Technical Details
Power Supply
DC4.5V-6.5V, 4 standard 1.5V AA alkaline batteries
Battery life
Over 15000 times normal unlocking
Static current
<20 uA
Dynamic current
<150mA
Car reading distance
<0.5s
Date keeping
Over 10 years
Material
Zinc & aluminium alloy
Applicable chip
Mifare-1 card(13.56MHz),Temic 5557 card and EM card (100KHz-150KHz)
Opening time
Turning the handle one time to open the door in valid, if don’t open the door, it will be locked automatically in 6s
Reliable opening
The success rate of opening is 100% in normal punching
Low voltage
When voltage lower than 4.8V, it has acousto-optic warning but it still can be opened 100 times
Mechanical key
Equipped with spare mechanical key make sure the door unlocking in emergency; It can be made as one key for one door or one key for all door
Installation size
Make sure the door thickness between 38 and 80 mm (Pls mark specially if over 55mm).45mm is the of door must be over 130mm.
Way of card issuing
Software management or self card issuing
Accessories required for Hotel Locks
EDLS - 205 |
EDLS - 206 Multifunction data Card Features: ● It is recommended to equip with 5 pcs ● Set data card, clock card, setting card, lock body information card as per request. |
EDLS - 206 A Multifunction data Card Features: ● Use to manage and open doors |
EDLS - 208 Card |
EDLS - 207 Hotel Lock Management Software Features: ● Network data sharing multi-point card recycling ● Install on computer and use for door lock management. ● There has luxury network version and standard version for selection as per user request. One set for each project. |
