EGSLDF - 301

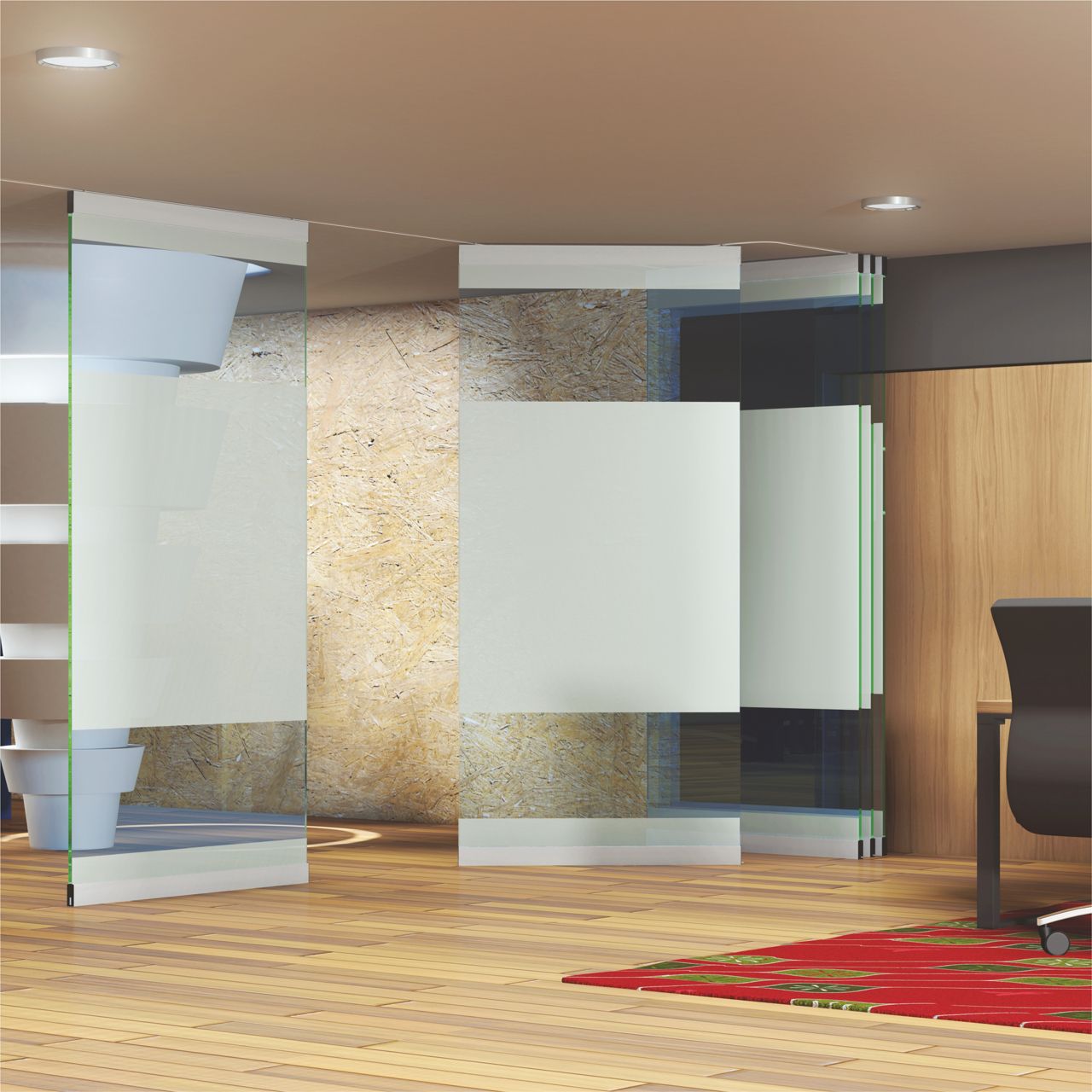

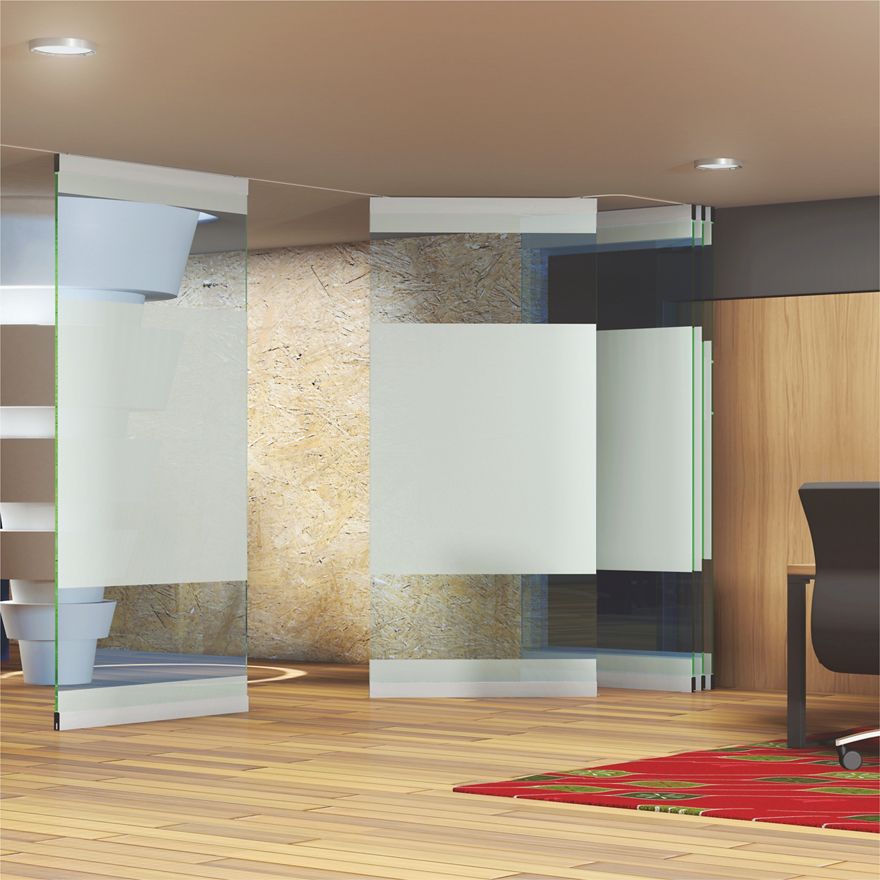

Movable Glass Partition System

Movable Glass Partition system are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximise space utilisation.
All mechanisms are fully integrated into highly attractive. Principle applications include office interiors, meeting rooms, sports and leisure facilities, school, colleges, churches, conference and function suites, exhibition centres, banks and restaurants.

Features :
• Advanced movable glass partition mechanism for framless glass panels with professional design concept.
• Universal design for DIN left & DIN right application.
• Smooth and silent operation.
• Fully integrated locking system.
• Maximum door weight : 150 kgs.
• Maximum door width : 1200mm.
• Minimum door width : 700mm.
• Maximum door height : 3300mm.
• Maximum glass thickness : 10 - 12mm.
