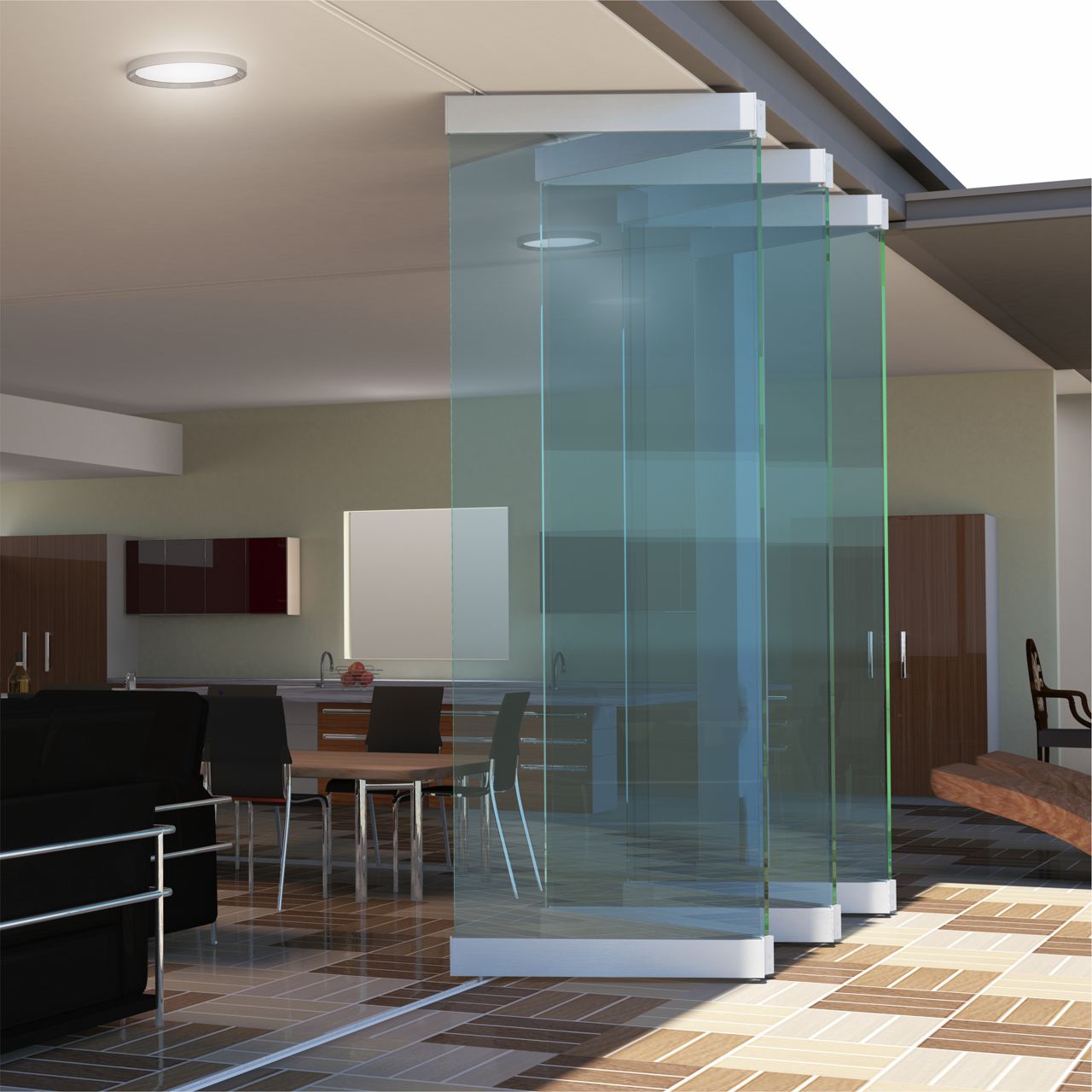

Heavy Glass Side Sliding Folding
Glass folding system for all-glass folding panel for even number of panels. This system combines perfectly with
each other of greater diversity and versatility in your design. All mechanisms are fully integrated into highly attractive end product.
This system can be quickly and easily adapted to new situations. It’s ideal for use in office interiors, meeting rooms, shopping malls, hotels, restaurants, homes, etc.
Features :
Glass side sliding folding system for 2+1 without bottom track/guide and up to 6+1 glass panels with bottom guide.
Universal design for DIN left & DIN right application.
Smooth and silent operation.
Fully integrated locking system.
All panels are connected using hinges integrated in profiles.
• Maximum door weight : 120 kgs.
• Maximum door width : 900mm.
• Minimum door width : 400mm.
• Maximum door height : 3300mm.
• Maximum glass thickness : 10 - 12mm.
